The UN/EDIFACT BAPLIE message format describes a vessel’s bay plan. XPS reads and writes UN/EDIFACT BAPLIE 1.5, BAPLIE 2.0, BAPLIE 2.1 and BAPLIE 2.1(VGM).

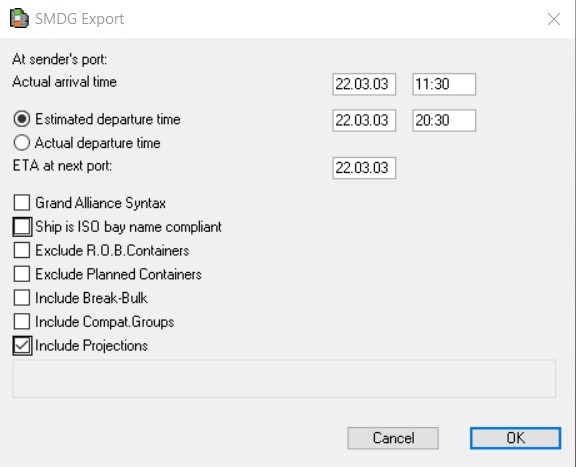

When you select Include Projections check box in the SMDG Export window and export the BAPLIE file, projections are also added to the file. If a projection has the equipment ID, the container ID is updated in the EQD section; otherwise, the EQD section is updated as PROJECTED.

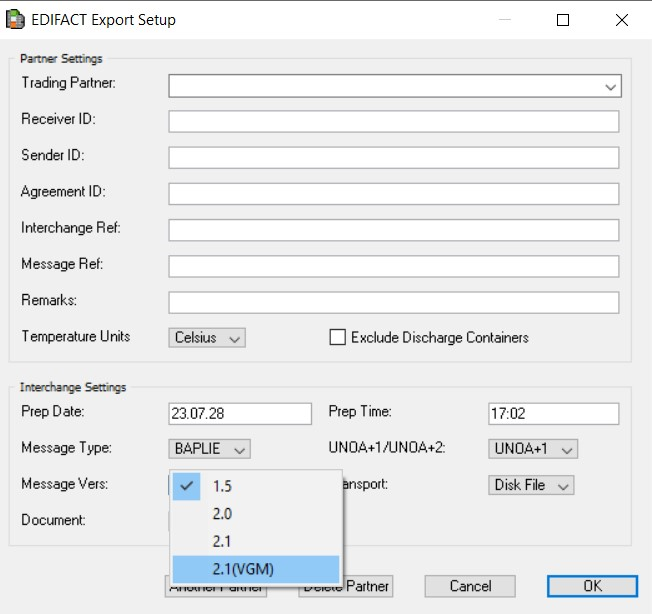

When you select 2.1(VGM) from the Message Version drop-down list in the EDIFACT Export Setup window, WT is replaced with VGM in the MEA section in the BAPLIE exported file.
To perform BAPLIE 1.5/2.0 Export, enable EDI setting BAPEXP so that BAPLIE 1.5/2.0 Export Action menu item is displayed in the EDI window.
